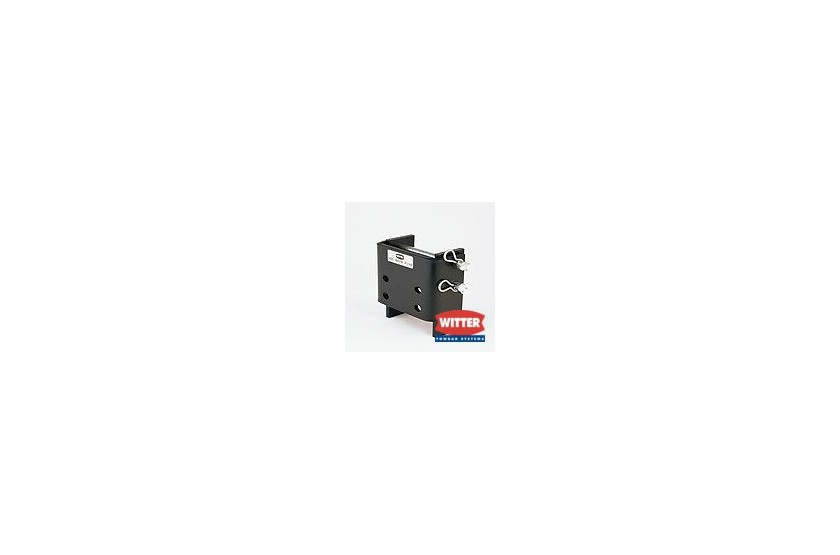

Z52A Adjustable Height Coupling

Primarily for use with commercial or off-road vehicles with towbars having 4 hole face-plates... this simple device offers a variety of mounting heights for the ball.

• The ball carrying saddle can be moved between alternative heights... without the use of tools... merely by removing the 19mm pins and safety R clips... which must always be fitted. Two pins are employed to minimise the rattle sometimes associated with a single pin arrangement The total range of adjustment is 100mm by sliding the carrier plate... - plus a further 45mm by using the alternative coupling mounting holes.
• Important this product should only be fitted to towbars that have a four hole faceplate.
• This product is not EC Type Approved and is not suitable for use on light passenger carrying vehicles (Class M) first registered on or after the 1st August 1998.
